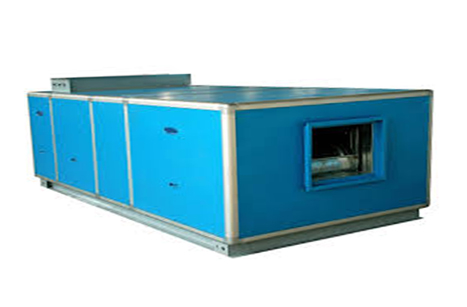

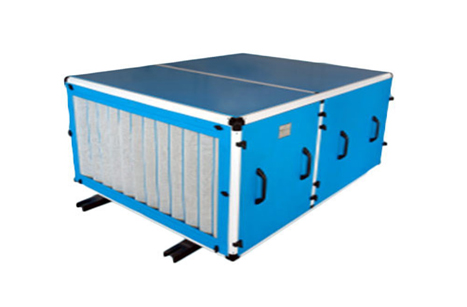

Air Handling Unit

We, Desmod manufacture Air handling unit for with, wide and universal applications, characterized by the possibility of individual configuration tailored to the needs and preferences of the customer.

Capacity : from 800 CFM to 38 000 CFM
Filters : 10 micron to 0.03 Micron Filters

Features of Our AHU :

Applications – Cooling, heating, Humidification, Ventilation.

FrameWork – Mainframe of self- supporting hollow extruded Aluminium profile.Thermal break construction as an option.

Frame Panels – Double Skin CFC / HFC free PUF injected 25 / 43 50 / 75mm thick panels. Various skin option available in plain GSS, prepainted GSS, pre plasticised GSS, Aluminium, Stainless steel as per duty requirements.

Fan Section – Fan Section contains belts driven DIDW Forward / Backward /Aerofoil Backward curved Centrifugal Blower & direct driven Plug.The centrifugal fan is AMCA certified for sound & air performance.

Type of Air Handling units :

• Single / Double Skin Type - AHU
• Clean Room Type – AHU
• Ceiling Suspended – AHU
• Floor Mounted – AHU
